Orthopaedic Trimming and Sanding Machine

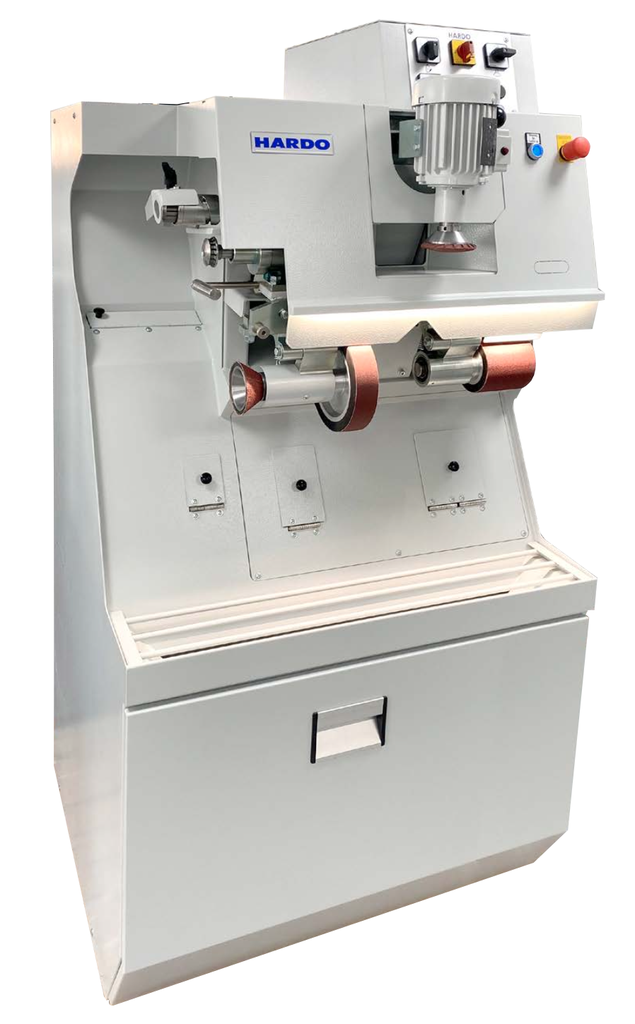

The HARDO Ideal Ortho 85 B is a professional trimming and sanding machine designed for orthopaedic footwear workshops. Its compact, stand-alone design combines multiple trimming and sanding stations with an integrated dust extraction system and cotton filter, eliminating the need for a separate external filter cabinet.

The machine features twin trimmers, including a dedicated heel and sole trimming unit, two sanding belts, a heel-breasting cone with bayonet fitting and a swivelling finishing unit. The diagonal extraction wall efficiently collects dust close to the working area.

The Ideal Ortho 85 B provides a complete, space-saving solution for the trimming, shaping and finishing of orthopaedic footwear components.

Main features
Professional trimming and sanding machine
Integrated dust extraction system with cotton filter
Diagonal extraction wall
Twin trimming units
Dedicated heel and sole trimmer
Heel-breasting cone with bayonet fitting
Two sanding stations:
1 × 40 × Ø175 mm
1 × 100 × Ø100 mm
Manual sanding-belt tensioning
Swivelling finishing unit
Manually operated extraction flaps
Compact stand-alone construction
Colour: light grey, RAL 7035
Made in Germany
Technical specifications
Power supply: 400 V / 3 Ph / 50 Hz
Motor power: 2.85 kW
Dimensions: 850 × 780 × 1,720 mm (W × D × H)
Weight: 305 kg
